Choosing the right ADAS calibration accessories depends on your target vehicle and the specific calibration procedure. Autel US offers OE-sized corner reflectors, a corner reflector stand, and a laser emitter, each with a one-year limited warranty. Focus on matching the reflector to the vehicle make and ensuring you have the required stand and laser for the setup.
If you are searching for ‘how to choose adas calibration accessories’, this guide uses only Autel US published information to help you make an informed decision. ADAS calibration requires precise equipment: the correct corner reflector, a stable stand, and often a laser positioning tool.
Based on Autel’s product data, the key is to match the accessory to your vehicle’s calibration procedure. Autel offers US Version accessories identified by part numbers, and each is covered by a one-year limited warranty. Below we outline what to look for and common pitfalls to avoid.
Who This Guide Is For
This guide is for automotive workshops and technicians performing radar calibration for ADAS systems such as Blind Spot Monitoring (BSM), Adaptive Cruise Control (ACC), and Front Collision Warning (FCW). It is also useful for DIYers who own Autel diagnostic tools and need to select the correct calibration accessories. The examples are based solely on Autel US products and their published specifications.
Key Criteria for Choosing ADAS Calibration Accessories
According to Autel US product descriptions, consider these factors:
- Vehicle Make and Model: Each corner reflector is OE-sized for specific manufacturers. For example, the CSC0802-11 is for supported Hyundai and Mazda vehicles, while the CSC0802-10 is for supported Toyota, Honda, and Subaru vehicles.
- Calibration Procedure: The reflector is intended for procedures that specify that exact part number (e.g., 802-11 or 802-10). Always verify your procedure requirements.
- Stand and Laser Support: The CSC0800 Corner Reflector Stand is needed to hold the reflector and laser. The CSC0802-13 Corner Laser is a battery-powered laser emitter for positioning the reflector. Ensure your setup includes all required components.
- Warranty and Support: All three accessories are covered by a one-year limited warranty. Autel US also offers a 30-day return policy and free standard shipping within the continental U.S.
Common Mistakes to Avoid
Based on Autel’s product information, here are frequent errors:
- Using the wrong corner reflector: A reflector designed for Honda may not work on Hyundai. Always use the OE-sized reflector specified for the vehicle brand.
- Forgetting the stand or laser: The corner reflector alone is not enough. The CSC0800 stand and CSC0802-13 laser are separate accessories required for proper calibration setup.
- Assuming one-size-fits-all: Autel lists separate part numbers for each application. Check the part number against your procedure.
Questions to Ask the Brand Before Ordering
When contacting Autel US (support@autel-us.com) or reviewing their site, ask:
- Which vehicle models and model years are supported by the CSC0802-10 and CSC0802-11 corner reflectors?
- Is the CSC0800 stand compatible with all Autel corner reflectors and the CSC0802-13 laser?
- What is the exact return process for non-defective items under the 30-day return policy?
- Does the calibration procedure require any additional frame (e.g., an ADAS Calibration Frame) not listed in these accessories?
- What is the warranty coverage for the laser emitter and stand? (One-year limited warranty is stated for each.)
Examples from Autel US Products
Based on the DATA, here are the available ADAS calibration accessories from Autel US:

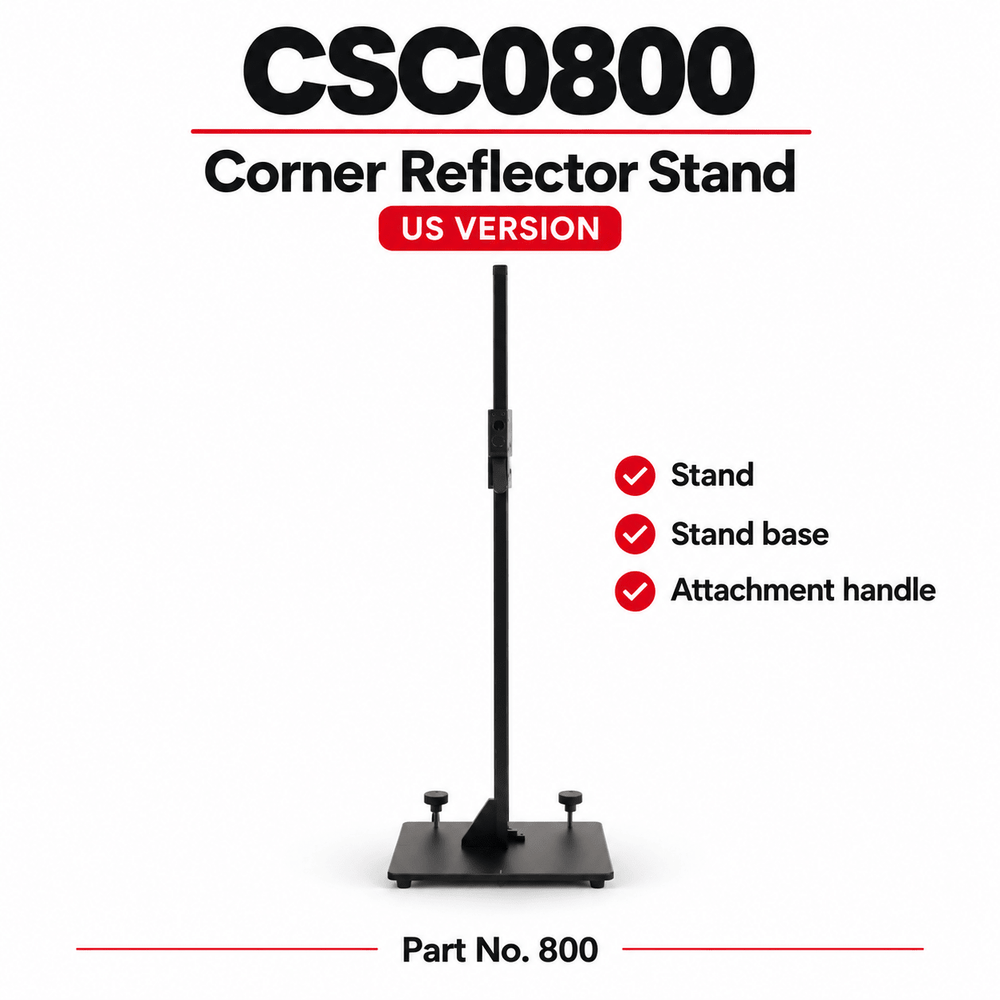

- autel-csc0800-corner-reflector-stand – CSC0800 Corner Reflector Stand (US Version). Includes stand, base, and attachment handle for holding corner reflectors and laser.
- autel-csc0802-13-corner-laser – CSC0802-13 Corner Laser (US Version). Battery-powered laser emitter for positioning corner reflectors during radar calibration.
- autel-csc0802-11-corner-reflector – CSC0802-11 Corner Reflector (US Version). OE-sized for Hyundai and Mazda BSM, ACC, and FCW procedures.
- autel-csc0802-10-corner-reflector – CSC0802-10 Corner Reflector (US Version). OE-sized for Toyota, Honda, and Subaru BSM procedures.
Choose based on the vehicle you are calibrating and ensure you have the stand and laser if required by the procedure.
Checklist Before You Order
Before purchasing from autel-us.com, confirm the following:
- Verify your vehicle’s make and model is listed as supported for the specific corner reflector (e.g., CSC0802-10 for Toyota/Honda/Subaru, CSC0802-11 for Hyundai/Mazda).
- Check that the calibration procedure you are following specifies the exact part number (802-10 or 802-11).
- Ensure you have or purchase the CSC0800 Corner Reflector Stand and CSC0802-13 Corner Laser if they are needed for the setup.
- Review Autel’s 30-day return policy and free standard shipping terms within the continental U.S.
- Note that each product comes with a one-year limited warranty – keep your receipt for proof of purchase.
Frequently asked questions
What does the Autel CSC0800 Corner Reflector Stand include?
Based on Autel’s data, the CSC0800 (part number 800) includes a stand, stand base, and attachment handle. It is designed to hold applicable corner reflectors and the laser emitter during radar calibration.
Which vehicles are compatible with the CSC0802-11 corner reflector?
The CSC0802-11 is an OE-sized corner reflector for supported Hyundai and Mazda vehicles. It is used in Blind Spot Monitoring (BSM), Adaptive Cruise Control (ACC), and Front Collision Warning (FCW) calibration procedures.
Do I need the corner laser and stand for every calibration?
Not stated by the brand for every procedure, but the Autel CSC0802-13 corner laser and CSC0800 stand are listed as accessories for radar calibration setups. Check your specific procedure requirements.
What is the warranty on Autel ADAS calibration accessories?
All three products (CSC0800, CSC0802-13, CSC0802-11, CSC0802-10) are covered by a one-year limited warranty according to Autel US product descriptions.
Can I return an ADAS calibration accessory if it doesn't fit my vehicle?
Autel US offers a 30-day return policy. Items must be unused, in original packaging, and with proof of purchase. Return shipping is free for defective items; non-quality returns may have shipping costs deducted from the refund.
